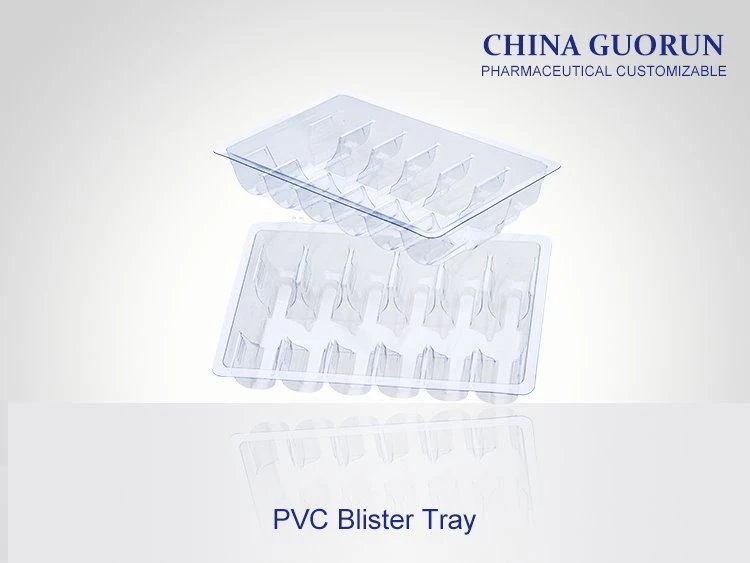

Our product is a thermoformed PVC insert customized to the geometry of tablets, capsules, ampoules, vials, or small medical devices. Each Medical packaging tray uses individual cavities, separation ribs, and edge support to hold items in a controlled orientation while they move through loading, inspection, and outer-carton packing. Material thickness, cavity depth, row layout, color, and sterilization compatibility are selected from the approved sample or drawing for the packed item.
Product Parameters
|
Item |
Specification |
|
Material |
Medical-grade PVC |
|
Process |
Thermoforming and blister forming |
|
Thickness |
0.25 mm to 1.8 mm |
|
Color |
Transparent, white, or custom colors |
|
Cavity Design |
Custom size, shape, and cavity layout |
|
Sterilization Compatibility |
EO, gamma ray, and low-temperature plasma |
|
Application |
Packaging for tablets, capsules, ampoules, vials, and small medical devices |
|
Packing Form |
Stacked trays, polybag packing, and export carton packing |
Product Advantages
Separated cavities in a Medical packaging tray reduce part-to-part contact and make an empty position easier to identify before the loaded tray enters the outer package.
Custom cavity shape, sheet thickness, and rim design allow the insert to support different product sizes while maintaining a stackable format for internal transport and line-side handling.
Clear, white, or custom-color material plus EO, gamma, and low-temperature-plasma compatibility options give packaging teams several ways to match visual inspection and validated processing requirements.
Main Applications
It is used in drug packing lines, lab sample packs, medical kits, and transit cartons.
The cavity layout should match product size, row count, and packing direction.
FAQ
Q: What data is needed for tray design?
A: Item size, quantity per tray, depth, material, and packing direction should be confirmed.
Q: Can the cavity layout be changed?
A: Yes. It follows the sample or approved drawing.
Q: What does Medical packaging tray do?
A: Medical packaging tray holds pharmaceutical items in ordered positions during packing.
